Container Tanks

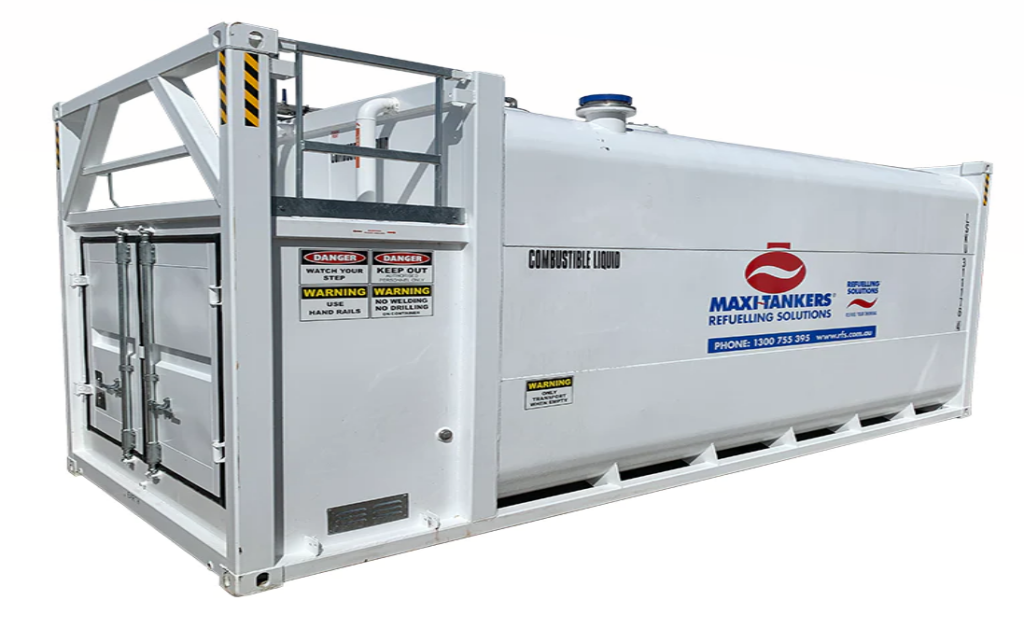

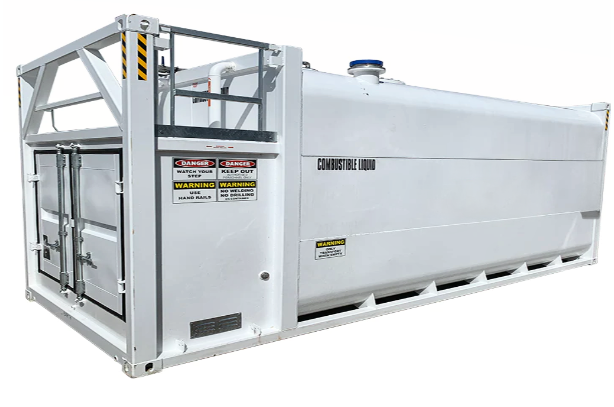

FE CONTAINERISED DIESEL / ADBLUE Self Bunded Tank Range

SKU: CAB
For the FE Containerised Diesel/AdBlue Self Bunded Tank Range, we offer customizable options to meet your specific needs. Each tank is manufactured with two compartments: one for Diesel storage and the other, fully constructed with 304 Stainless Steel, for AdBlue storage.
Features of the tank range include:
  • The tank is UL listed and approved to UL142/ULC-S601 standards.
  • It features a dedicated AdBlue compartment with a full 304 stainless steel primary tank and a carbon steel secondary tank. All wetted parts are made of 304 stainless steel. The capacity of the AdBlue compartment is customizable.
  • The Diesel compartment consists of carbon steel primary and secondary tanks, with customizable capacity to meet operational requirements.
  • The tank is self-bunded with a double-wall design and a unique rounded rectangular profile, maximizing storage footprint while maintaining full visibility underneath for long-term fuel/oil storage applications.
  • Manufactured to standard container footprints of 10ft, 20ft, 40ft, and 48ft, and CSC plated for transportation via sea, rail, or road.
  • 6. It is approved and designed to meet UL142, ULC-S601, BS799, AS1940, AS1692, and AS1657 standards.
  • Integrated valving includes an 80mm (3″) Anti Syphon Valve and Overfill Protection Valve.
  • Features a battery-operated (12V) Overfill Alarm, 80mm (3″) Fill Line with Sch 40 Pipe, ANSI 150# Flanges, Camlock Male Fitting, Fire Safe Ball Valve, and Wafer Style Non-Return Valve for fill inlet.
  • The suction outlet is supplied with an 80mm (3″) Suction Line terminating with a Fire Safe Ball Valve.
  • Optional integrated or clip-on Bunded (Contained) Pump Bay Housing is available, featuring heavy-duty lockable container doors with weatherproof seals.
  • An integrated ladder/platform designed to AS1657 allows for flexible site positioning and operation.
  • A 600mm Manway with Integrated Ladder assists with degassing for future tank maintenance.
  • The tank is painted with RAL9003 Signal White using a 3-stage Hempel Marine Paint process.
  • Optional baffles allow for liquid movement during transportation.
  • Suitable for storing and dispensing diesel, lubricants, gasoline (petrol), and waste oil.
  • Multiple compartment tanks are available in all footprints to accommodate various grades/types of liquids.
  • Features a rounded floor profile with an engineered low point and a 25mm Suction Line for water removal.
These customizable features allow us to tailor the FE Containerised Diesel/AdBlue Self Bunded Tank to meet the unique requirements of your site, ensuring efficient and safe storage solutions for both Diesel and AdBlue.
The tank range capacities are:
  • CAB 30- 7925 Gallons;
  • CAB 68- 17963 Gallons;
  • CAB 80- 21133 Gallons &
  • CAB 110- 29058 Gallons
